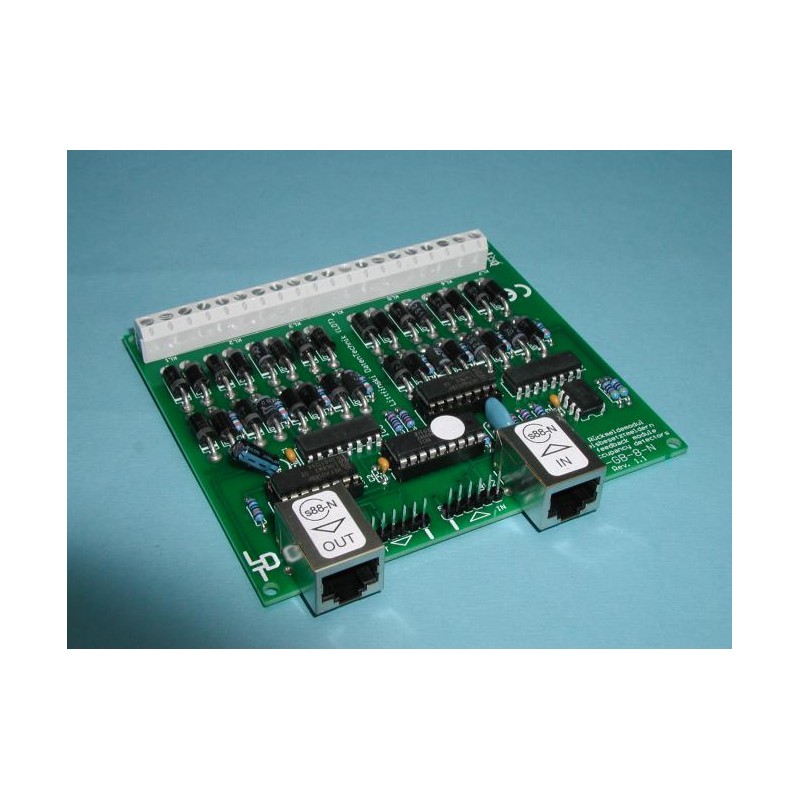

RM-GB-8-N-B Détecteur d’occupation s88 / s88-N/ 8-fold feedback module

Rétrosignalisateur avec détecteurs d’occupation intégrés pour le bus s88

• Détection d’occupation de 8 sections de voie isolées (détection de courant)
• Convient pour le bus s88 à 6 pôles et pour s88-N avec connecteur RJ45

 Ce décodeur vous offre aussi la possibilité d’étendre des systèmes s88 en existence par le nouveau standard s88-N: sur chaque module on peut choisir les câbles à utiliser

8-fold feedback module with integrated occupancy detectors for the s88-feedback bus. For s88 standard connections and s88-N.

• For the connection to command stations and interfaces, which supports the s88-feedback bus: e.g.
  • Märklin Interface (up to 62 units),
  • Märklin Memory (up to 6 units),
  • Central Station 1 and 2 (up to 62 units),
  • Central Station 3 and 3 plus via L88 with 5V s88-bus voltage (up to 62 units per Bus 1 to 3),
  • Intellibox/TWIN-CENTER (up to 62 units),
  • EasyControl (up to 62 units),
  • ECoS (up to 62 units),
  • Commander (up to 62 units),
  • HSI-88(-USB) (up to 62 units) und
  • DiCoStation (up to 62 units).

• It is suitable for the control of 8 track sections with a current load up to 3 Ampere. A short peak current up to 7 Ampere will be acceptable. Isolated rails or track sections to be monitored have to be simply connected to the output clamps of the feedback module to get a digital current supply. The track section can be isolated on one or on both sides.
• The 8-fold feedback Module RM-GB-8-N with integrated track occupancy report is separated into two 4-fold occupancy devices. Therefore is it possible to monitor tracks of two different booster circuits. The separation into two 4-fold track occupancy devices simplifies as well the monitoring of reverse-loops. More information about this issue can be found within the file Reversing loop monitoring at the download section.
• Including an integrated voltage monitor: If there is no voltage at the tracks (e.g. after short circuit) the occupied identification will be “frozen” during the interruption.
• For the feedback module is no additional power supply required. This reduces the wiring effort.
• The Feedback Module RM-GB-8-N is for s88-standard connections equipped with 6-poles pin bars and for bus connections according to s88-N with screened RJ-45 sockets.
